Eaves tray Sketch

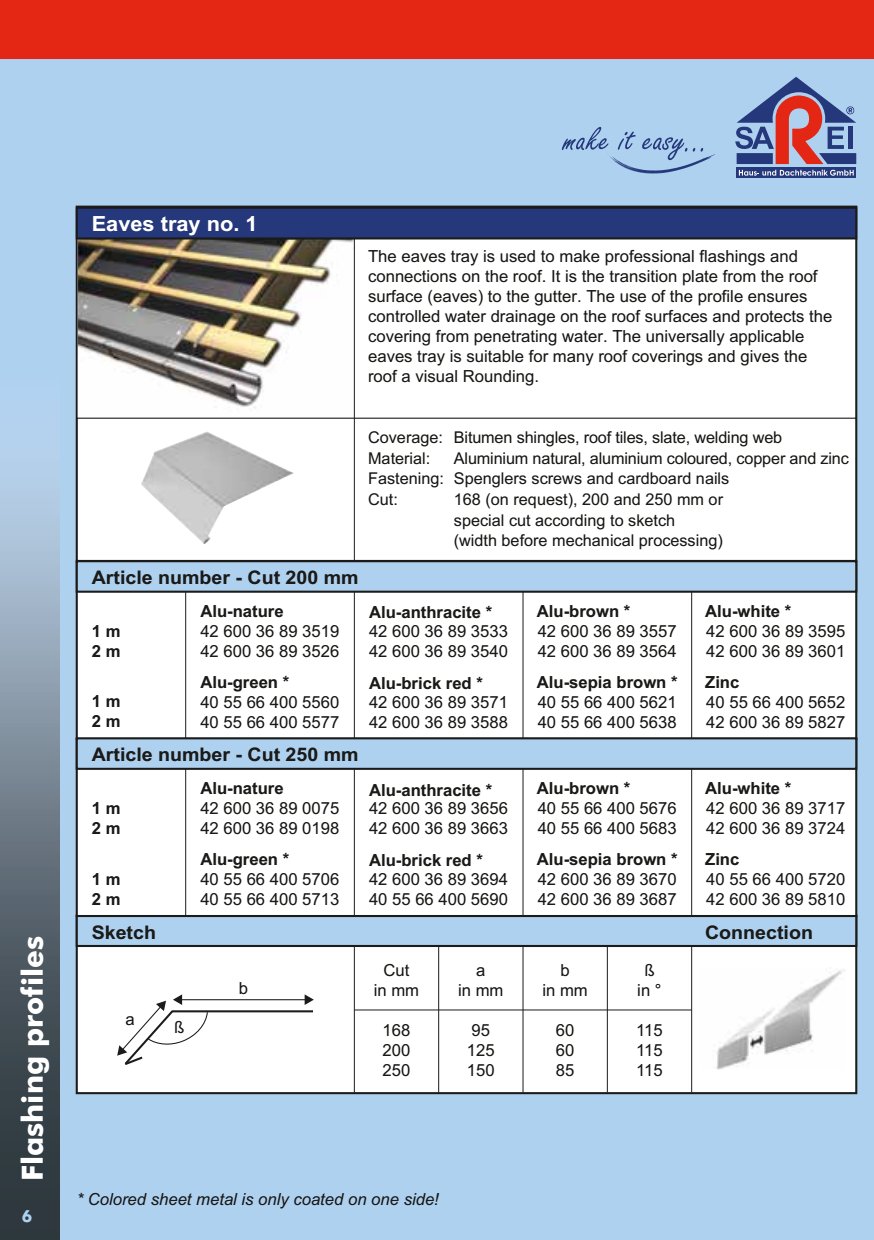

6 Fl a sh in g p ro fi le s Eaves tray no. 1 The eaves tray is used to make professional flashings and connections on the roof. It is the transition plate from the roof surface (eaves) to the gutter. The use of the profile ensures controlled water drainage on the roof surfaces and protects the covering from penetrating water. The universally applicable eaves tray is suitable for many roof coverings and gives the roof a visual Rounding. Coverage: Material: Fastening: Cut: Bitumen shingles, roof tiles, slate, welding web Aluminium natural, aluminium coloured, copper and zinc Spenglers screws and cardboard nails 168 (on request), 200 and 250 mm or special cut according to sketch (width before mechanical processing) Sketch Connection Cut in mm 168 200 250 a in mm 95 125 150 ß in 115 115 115 b in mm 60 60 85 a b ß Article number - Cut 200 mm 1 m 2 m Alu-nature 42 600 36 89 3519 42 600 36 89 3533 42 600 36 89 3557 42 600 36 89 3595 42 600 36 89 3526 42 600 36 89 3540 42 600 36 89 3564 42 600 36 89 3601 Alu-anthracite Alu-brown Alu-white 1 m 2 m Alu-green 40 55 66 400 5560 42 600 36 89 3571 40 55 66 400 5621 40 55 66 400 5652 40 55 66 400 5577 42 600 36 89 3588 40 55 66 400 5638 42 600 36 89 5827 Alu-brick red Alu-sepia brown Zinc Article number - Cut 250 mm 1 m 2 m Alu-nature 42 600 36 89 0075 42 600 36 89 3656 40 55 66 400 5676 42 600 36 89 3717 42 600 36 89 0198 42 600 36 89 3663 40 55 66 400 5683 42 600 36 89 3724 Alu-anthracite Alu-brown Alu-white 1 m 2 m Alu-green 40 55 66 400 5706 42 600 36 89 3694 42 600 36 89 3670 40 55 66 400 5720 40 55 66 400 5713 40 55 66 400 5690 42 600 36 89 3687 42 600 36 89 5810 Alu-brick red Alu-sepia brown Zinc Colored sheet metal is only coated on one side!
