Ridge flashing Sketch

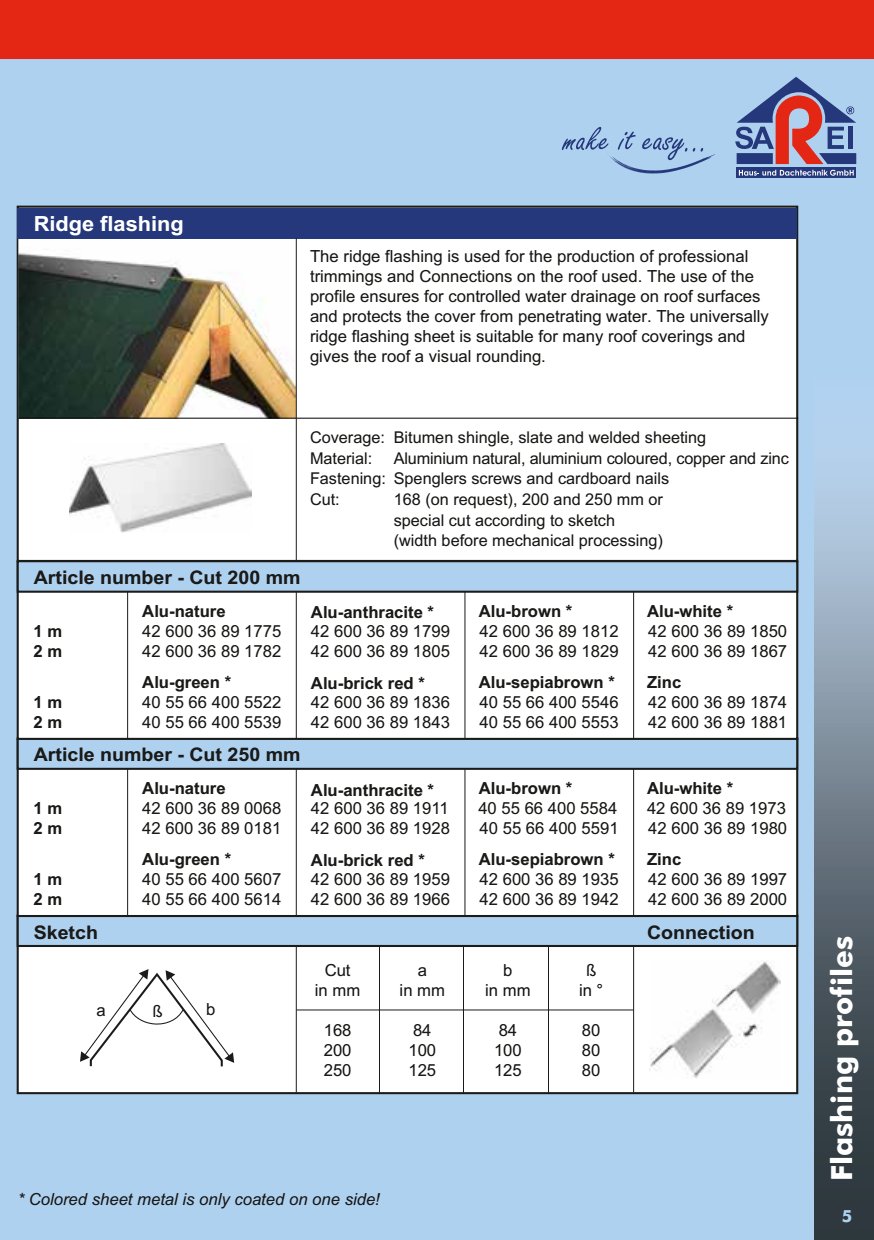

5 Fl a sh in g p ro fi le s Sketch Connection a b ß Article number - Cut 250 mm 1 m 2 m Alu-nature 42 600 36 89 0068 42 600 36 89 1911 40 55 66 400 5584 42 600 36 89 1973 42 600 36 89 0181 42 600 36 89 1928 40 55 66 400 5591 42 600 36 89 1980 Alu-anthracite Alu-brown Alu-white 1 m 2 m Alu-green 40 55 66 400 5607 42 600 36 89 1959 42 600 36 89 1935 42 600 36 89 1997 40 55 66 400 5614 42 600 36 89 1966 42 600 36 89 1942 42 600 36 89 2000 Alu-brick red Alu-sepiabrown Zinc Article number - Cut 200 mm 1 m 2 m Alu-nature 42 600 36 89 1775 42 600 36 89 1799 42 600 36 89 1812 42 600 36 89 1850 42 600 36 89 1782 42 600 36 89 1805 42 600 36 89 1829 42 600 36 89 1867 Alu-anthracite Alu-brown Alu-white 1 m 2 m Alu-green 40 55 66 400 5522 42 600 36 89 1836 40 55 66 400 5546 42 600 36 89 1874 40 55 66 400 5539 42 600 36 89 1843 40 55 66 400 5553 42 600 36 89 1881 Alu-brick red Alu-sepiabrown Zinc Ridge flashing The ridge flashing is used for the production of professional trimmings and Connections on the roof used. The use of the profile ensures for controlled water drainage on roof surfaces and protects the cover from penetrating water. The universally ridge flashing sheet is suitable for many roof coverings and gives the roof a visual rounding. Coverage: Material: Fastening: Cut: Bitumen shingle, slate and welded sheeting Aluminium natural, aluminium coloured, copper and zinc Spenglers screws and cardboard nails 168 (on request), 200 and 250 mm or special cut according to sketch (width before mechanical processing) Colored sheet metal is only coated on one side! Cut in mm 168 200 250 a in mm 84 100 125 ß in 80 80 80 b in mm 84 100 125
