Wall flashing Article

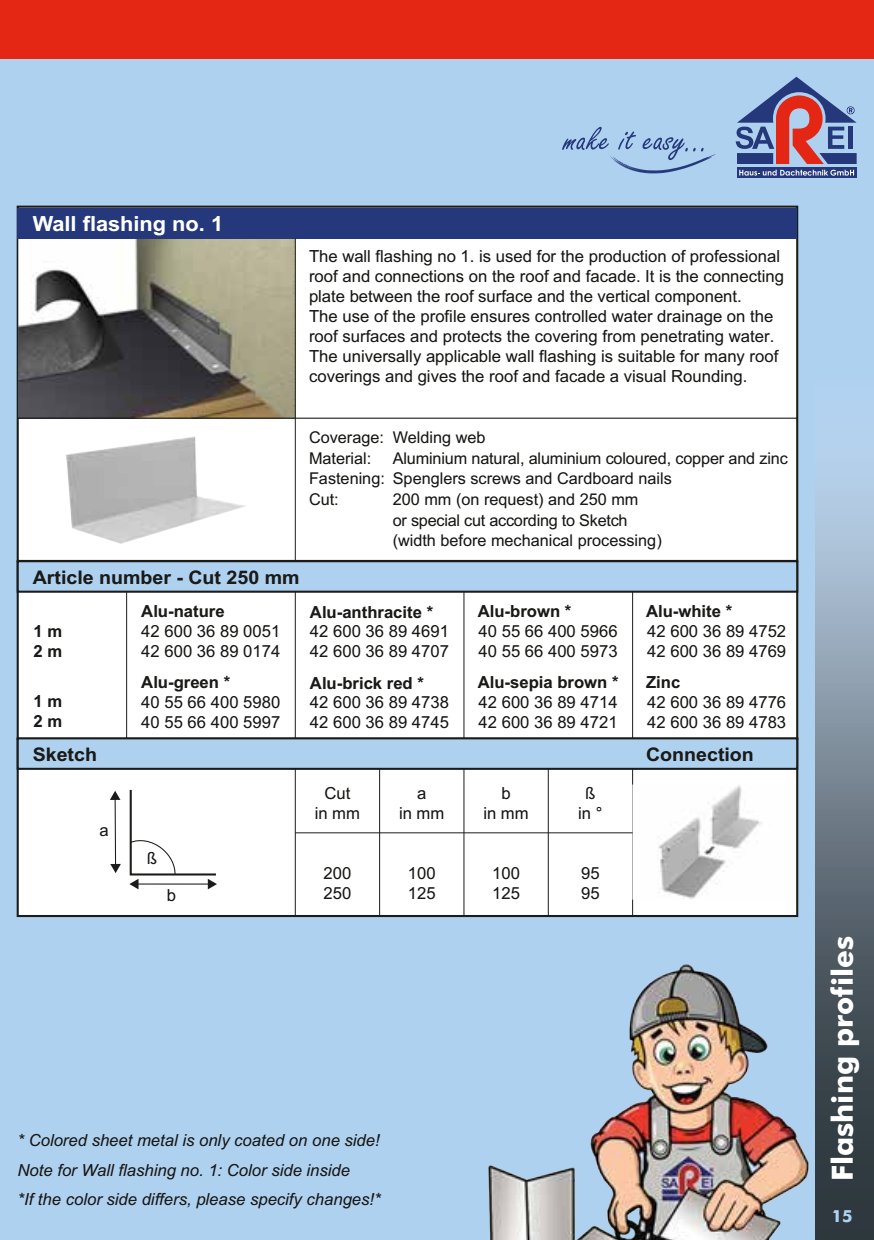

15 Fl a sh in g p ro fi le s Article number - Cut 250 mm 1 m 2 m Alu-nature 42 600 36 89 0051 42 600 36 89 4691 40 55 66 400 5966 42 600 36 89 4752 42 600 36 89 0174 42 600 36 89 4707 40 55 66 400 5973 42 600 36 89 4769 Alu-anthracite Alu-brown Alu-white 1 m 2 m Alu-green 40 55 66 400 5980 42 600 36 89 4738 42 600 36 89 4714 42 600 36 89 4776 40 55 66 400 5997 42 600 36 89 4745 42 600 36 89 4721 42 600 36 89 4783 Alu-brick red Alu-sepia brown Zinc Sketch Connection Cut in mm 200 250 a in mm 100 125 b in mm 100 125 ß in 95 95 a b ß Wall flashing no. 1 The wall flashing no 1. is used for the production of professional roof and connections on the roof and facade. It is the connecting plate between the roof surface and the vertical component. The use of the profile ensures controlled water drainage on the roof surfaces and protects the covering from penetrating water. The universally applicable wall flashing is suitable for many roof coverings and gives the roof and facade a visual Rounding. Coverage: Material: Fastening: Cut: Welding web Aluminium natural, aluminium coloured, copper and zinc Spenglers screws and Cardboard nails 200 mm (on request) and 250 mm or special cut according to Sketch (width before mechanical processing) Colored sheet metal is only coated on one side! Note for Wall flashing no. 1: Color side inside If the color side differs, please specify changes!
