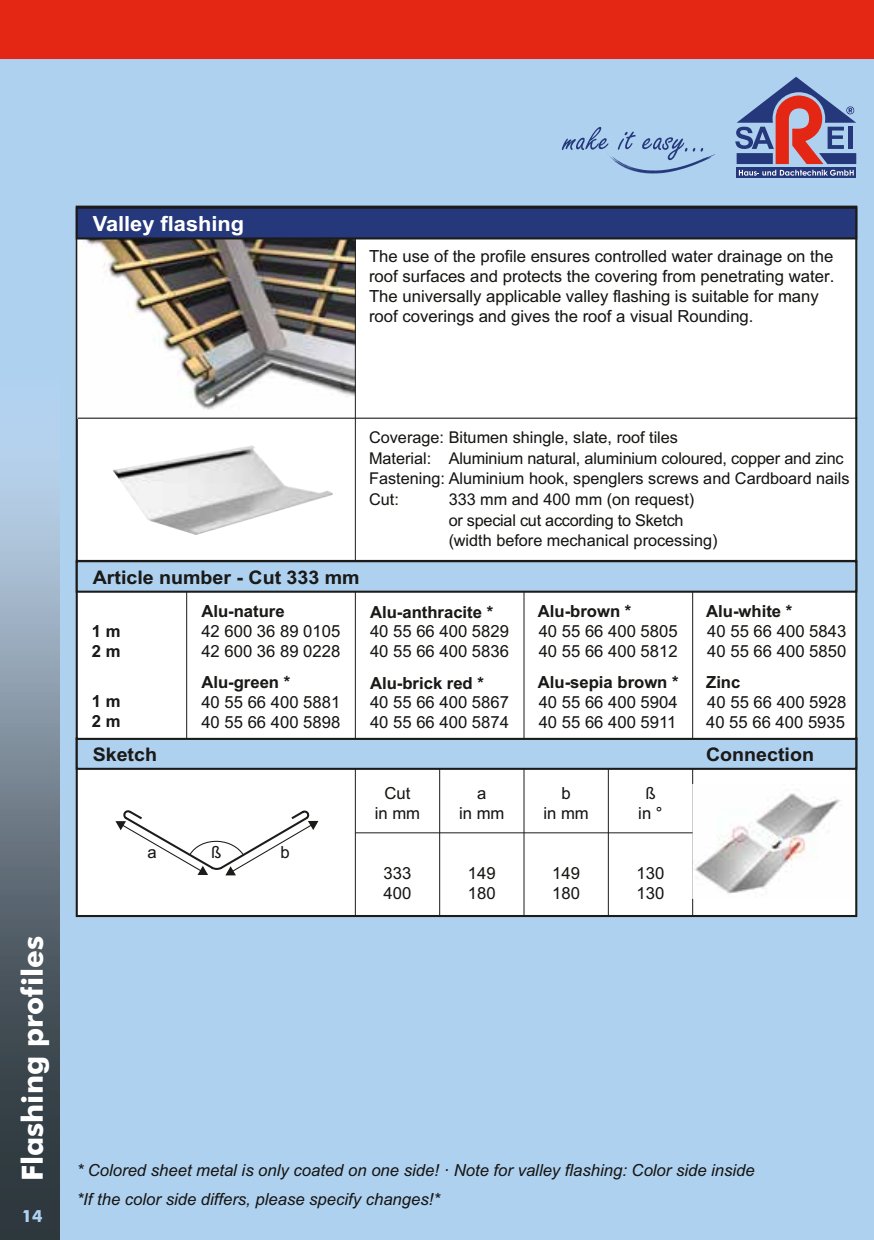

Valley flashing Sketch

14 Fl a sh in g p ro fi le s Sketch Connection Cut in mm 333 400 a in mm 149 180 b in mm 149 180 ß in 130 130 a b ß Article number - Cut 333 mm 1 m 2 m Alu-nature 42 600 36 89 0105 40 55 66 400 5829 40 55 66 400 5805 40 55 66 400 5843 42 600 36 89 0228 40 55 66 400 5836 40 55 66 400 5812 40 55 66 400 5850 Alu-anthracite Alu-brown Alu-white 1 m 2 m Alu-green 40 55 66 400 5881 40 55 66 400 5867 40 55 66 400 5904 40 55 66 400 5928 40 55 66 400 5898 40 55 66 400 5874 40 55 66 400 5911 40 55 66 400 5935 Alu-brick red Alu-sepia brown Zinc Valley flashing The use of the profile ensures controlled water drainage on the roof surfaces and protects the covering from penetrating water. The universally applicable valley flashing is suitable for many roof coverings and gives the roof a visual Rounding. Coverage: Material: Fastening: Cut: Bitumen shingle, slate, roof tiles Aluminium natural, aluminium coloured, copper and zinc Aluminium hook, spenglers screws and Cardboard nails 333 mm and 400 mm (on request) or special cut according to Sketch (width before mechanical processing) Colored sheet metal is only coated on one side! Note for valley flashing: Color side inside If the color side differs, please specify changes!
