THERMOPLAST Gutter Overview

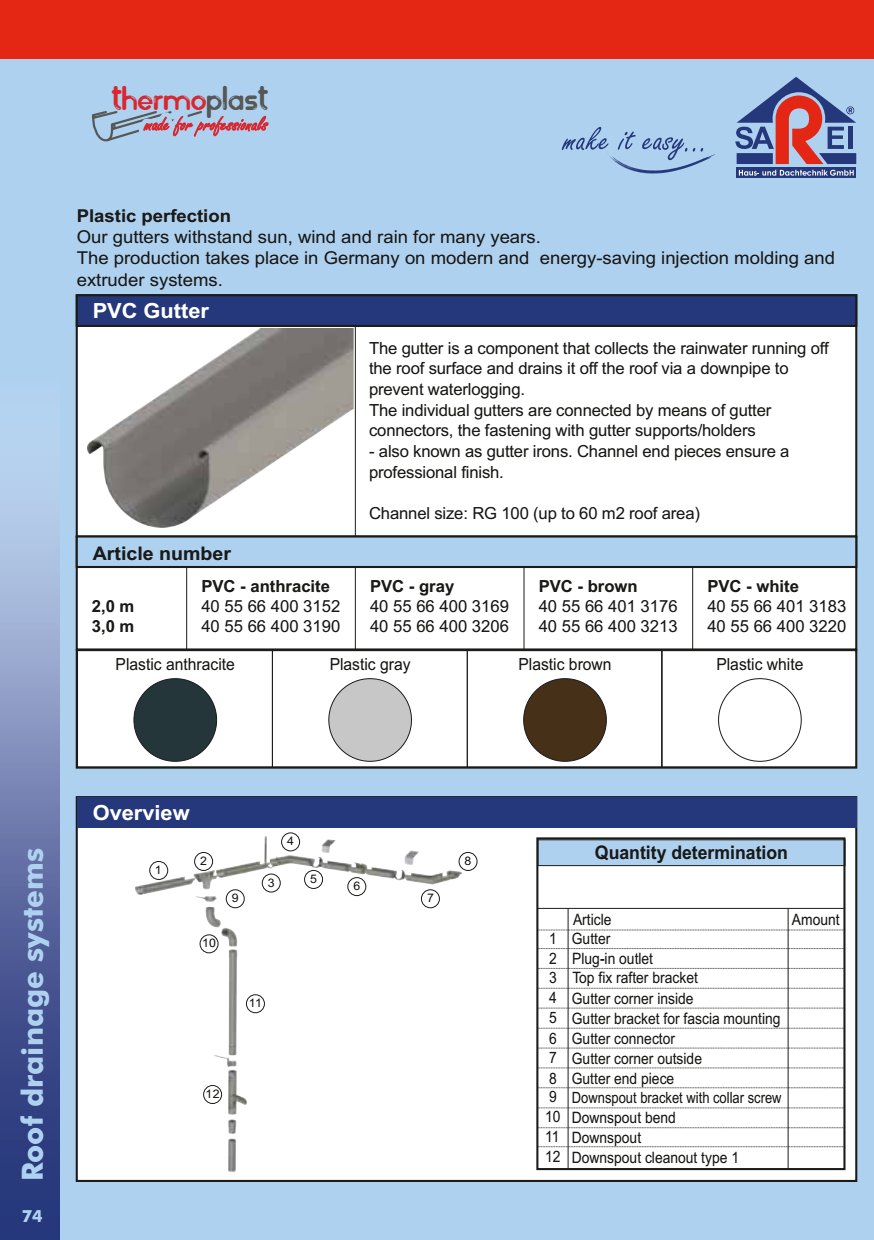

74 R o o f d ra in a g e s ys te m s THERMOPLAST PVC Gutter Article number 2,0 m 3,0 m PVC - anthracite 40 55 66 400 3152 40 55 66 400 3190 The gutter is a component that collects the rainwater running off the roof surface and drains it off the roof via a downpipe to prevent waterlogging. The individual gutters are connected by means of gutter connectors, the fastening with gutter supports/holders - also known as gutter irons. Channel end pieces ensure a professional finish. Channel size: RG 100 (up to 60 m2 roof area) PVC - gray 40 55 66 400 3169 40 55 66 400 3206 PVC - brown 40 55 66 401 3176 40 55 66 400 3213 PVC - white 40 55 66 401 3183 40 55 66 400 3220 Plastic anthracite Plastic gray Plastic brown Plastic white Plastic perfection Our gutters withstand sun, wind and rain for many years. The production takes place in Germany on modern and energy-saving injection molding and extruder systems. 1 2 3 7 4 5 6 8 9 10 Overview Quantity determination Article Amount Gutter 1 Plug-in outlet 2 Top fix rafter bracket 3 Gutter corner inside 4 Gutter bracket for fascia mounting 5 Gutter connector 6 Gutter corner outside 7 Gutter end piece 8 Downspout bracket with collar screw 9 Downspout bend 10 11 12 Downspout 11 Downspout cleanout type 1 12
