patented system glue

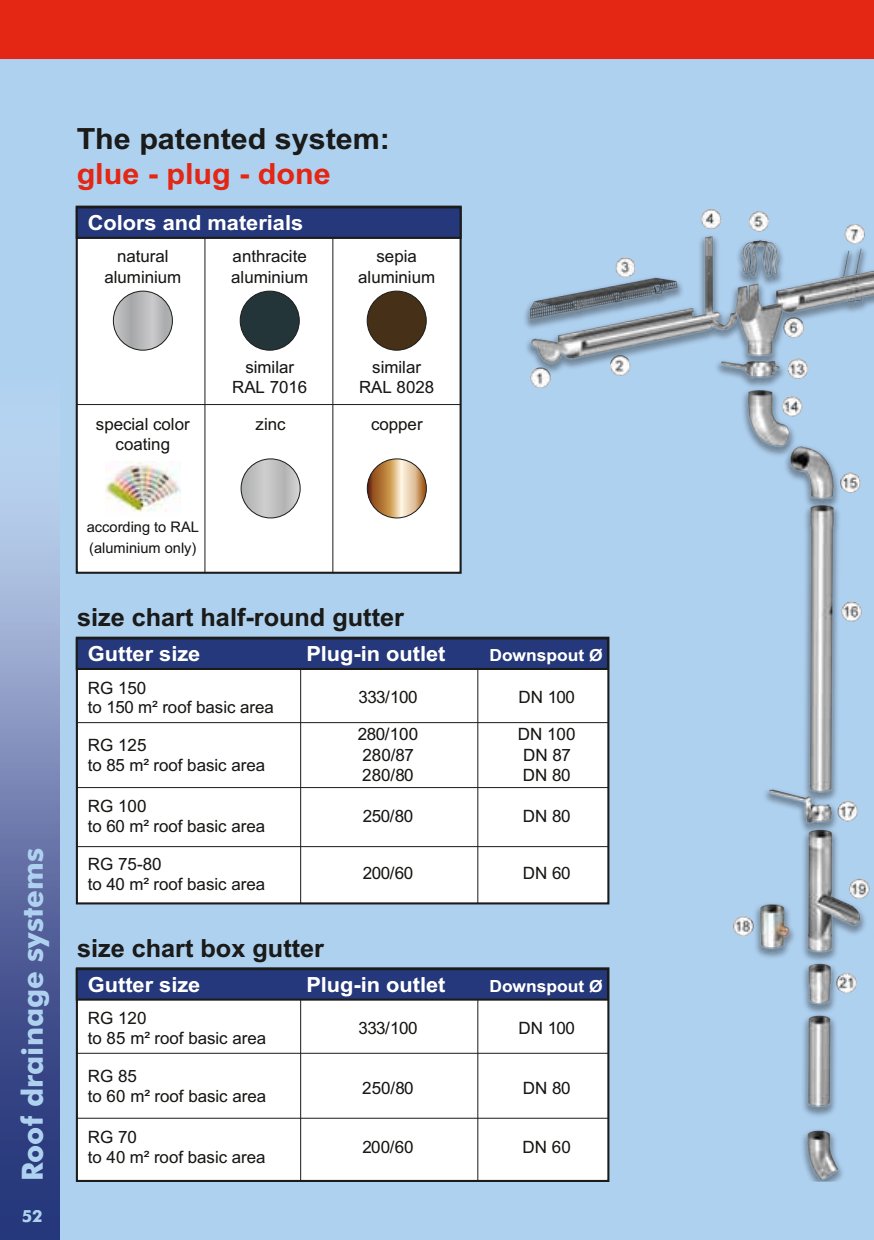

52 R o o f d ra in a g e s ys te m s The patented system: glue - plug - done size chart box gutter size chart half-round gutter Gutter size Plug-in outlet Downspout Ø 333/100 DN 100 280/100 280/87 280/80 DN 100 DN 87 DN 80 250/80 DN 80 200/60 DN 60 RG 150 to 150 m roof basic area RG 125 to 85 m roof basic area RG 100 to 60 m roof basic area RG 75-80 to 40 m roof basic area Gutter size Plug-in outlet Downspout Ø 333/100 DN 100 250/80 DN 80 200/60 DN 60 RG 120 to 85 m roof basic area RG 85 to 60 m roof basic area RG 70 to 40 m roof basic area Colors and materials natural aluminium anthracite aluminium similar RAL 7016 sepia aluminium similar RAL 8028 special color coating according to RAL (aluminium only) zinc copper
