Assembly with other

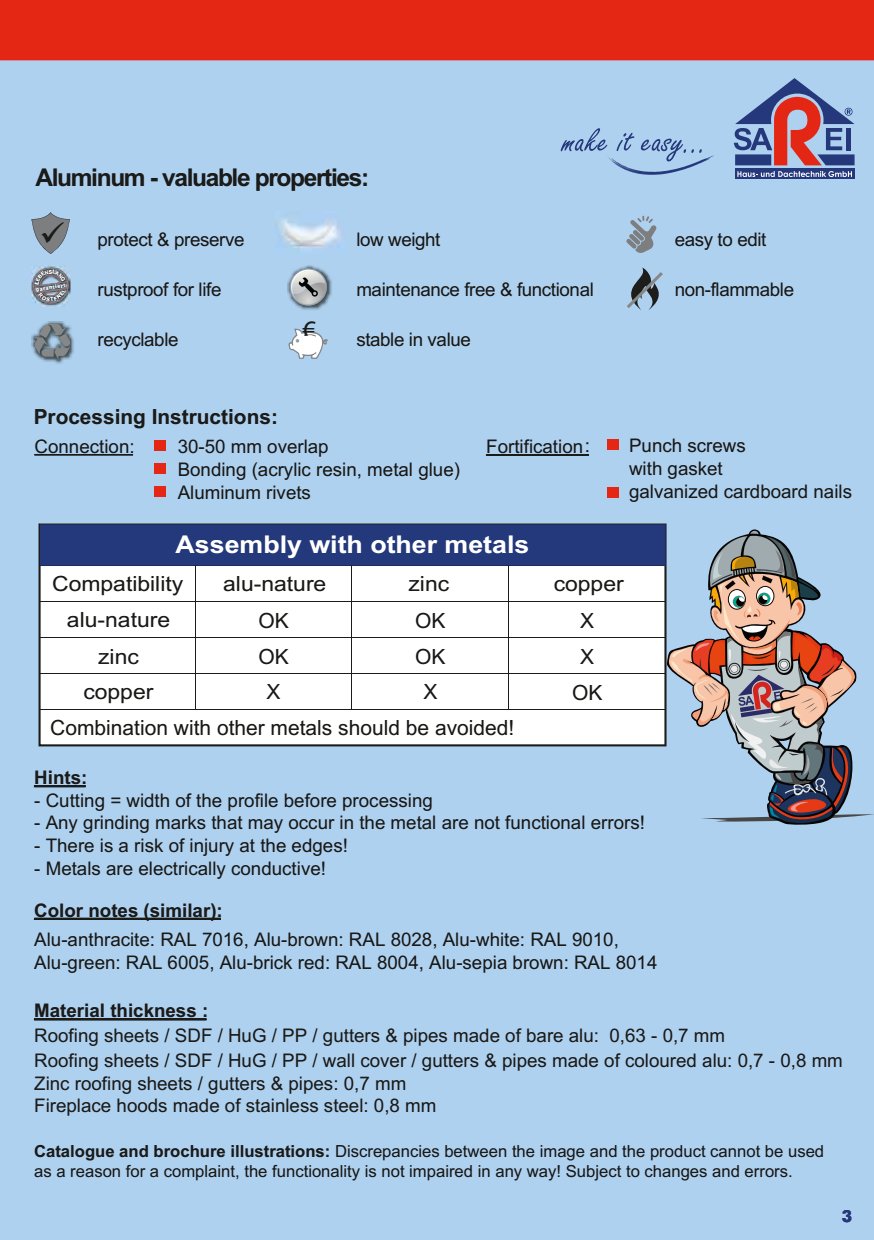

3 Assembly with other metals Compatibility alu-nature zinc copper alu-nature zinc copper OK OK OK OK X X OK Combination with other metals should be avoided! X X Hints: - Cutting = width of the profile before processing - Any grinding marks that may occur in the metal are not functional errors! - There is a risk of injury at the edges! - Metals are electrically conductive! Color notes (similar): Alu-anthracite: RAL 7016, Alu-brown: RAL 8028, Alu-white: RAL 9010, Alu-green: RAL 6005, Alu-brick red: RAL 8004, Alu-sepia brown: RAL 8014 Material thickness : Roofing sheets / SDF / HuG / PP / gutters & pipes made of bare alu: 0,63 - 0,7 mm Roofing sheets / SDF / HuG / PP / wall cover / gutters & pipes made of coloured alu: 0,7 - 0,8 mm Zinc roofing sheets / gutters & pipes: 0,7 mm Fireplace hoods made of stainless steel: 0,8 mm Catalogue and brochure illustrations: Discrepancies between the image and the product cannot be used as a reason for a complaint, the functionality is not impaired in any way! Subject to changes and errors. Processing Instructions: Connection: Fortification: Punch screws with gasket galvanized cardboard nails 30-50 mm overlap Bonding (acrylic resin, metal glue) Aluminum rivets LE B E NSLA NG R O S T F R EI g a r a n t i e r t protect & preserve rustproof for life recyclable low weight maintenance free & functional stable in value easy to edit non-flammable Aluminum - valuable properties:
